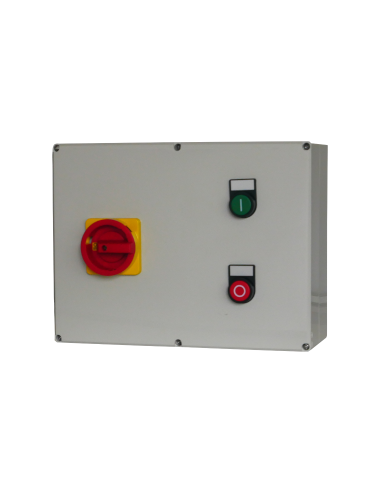

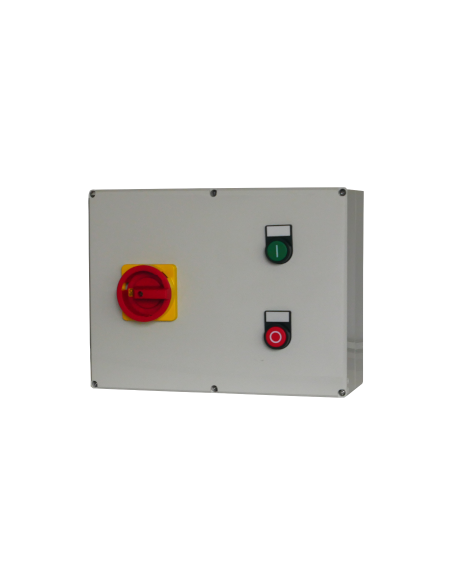

Direct motor starter box 400V 15kW

Quote request

€221.26 Tax excl.

Quantity discounts on the category 3.1 Motor starter box

✔ Between 5 and 9 products purchased: 10% discount

✔ 10 products and more purchased: 15% discount

☞ Want to become a distributor of our brand?
✉ Contact us for more customised discounts

Power kW

Current range (A)

Combinations	Power kW	Current range (A)	Reference	Stock	Price	Add to cart
Power kW : 7.5 W Current range (A) : 0.6 to 0.9 Reference : BDM_01SP_7K5_400_009 Stock : 0	7.5 W	0.6 to 0.9	BDM_01SP_7K5_400_009	Available later	€221.26 Tax excl.	€221.26 Tax excl.
Power kW : 7.5 W Current range (A) : 0.8 to 1.2 Reference : BDM_01SP_7K5_400_012 Stock : 0	7.5 W	0.8 to 1.2	BDM_01SP_7K5_400_012	Available later	€219.14 Tax excl.	€219.14 Tax excl.
Power kW : 7.5 W Current range (A) : 1.2 to1.8 Reference : BDM_01SP_7K5_400_018 Stock : 0	7.5 W	1.2 to1.8	BDM_01SP_7K5_400_018	Available later	€219.20 Tax excl.	€219.20 Tax excl.
Power kW : 7.5 W Current range (A) : 1.8 to 2.7 Reference : BDM_01SP_7K5_400_027 Stock : 0	7.5 W	1.8 to 2.7	BDM_01SP_7K5_400_027	Available later	€219.00 Tax excl.	€219.00 Tax excl.
Power kW : 7.5 W Current range (A) : 2.7 to 4 Reference : BDM_01SP_7K5_400_040 Stock : 0	7.5 W	2.7 to 4	BDM_01SP_7K5_400_040	Available later	€228.66 Tax excl.	€228.66 Tax excl.
Power kW : 7.5 W Current range (A) : 4 to 6 Reference : BDM_01SP_7K5_400_060 Stock : 0	7.5 W	4 to 6	BDM_01SP_7K5_400_060	Available later	€228.74 Tax excl.	€228.74 Tax excl.
Power kW : 7.5 W Current range (A) : 6 to 9 Reference : BDM_01SP_7K5_400_090 Stock : 0	7.5 W	6 to 9	BDM_01SP_7K5_400_090	Available later	€229.06 Tax excl.	€229.06 Tax excl.
Power kW : 7.5 W Current range (A) : 8 to 11 Reference : BDM_01SP_7K5_400_110 Stock : 0	7.5 W	8 to 11	BDM_01SP_7K5_400_110	Available later	€228.50 Tax excl.	€228.50 Tax excl.
Power kW : 7.5 W Current range (A) : 10 to 14 Reference : BDM_01SP_7K5_400_140 Stock : 0	7.5 W	10 to 14	BDM_01SP_7K5_400_140	Available later	€223.00 Tax excl.	€223.00 Tax excl.
Power kW : 15 W Current range (A) : 10 to 14 Reference : BDM_01SP_15K_400_140 Stock : 0	15 W	10 to 14	BDM_01SP_15K_400_140	Available later	€295.12 Tax excl.	€295.12 Tax excl.
Power kW : 15 W Current range (A) : 14 to 20 Reference : BDM_01SP_15K_400_200 Stock : 0	15 W	14 to 20	BDM_01SP_15K_400_200	Available later	€294.74 Tax excl.	€294.74 Tax excl.
Power kW : 15 W Current range (A) : 20 to 28 Reference : BDM_01SP_15K_400_280 Stock : 0	15 W	20 to 28	BDM_01SP_15K_400_280	Available later	€319.38 Tax excl.	€319.38 Tax excl.
Power kW : 15 W Current range (A) : 28 to 32 Reference : BDM_01SP_15K_400_420 Stock : 0	15 W	28 to 32	BDM_01SP_15K_400_420	Available later	€295.68 Tax excl.	€295.68 Tax excl.

Description

Engine starter box sold with adapted thermal relay.

Characteristics:

Power: 7.5kW / 18A 15kW / 32A
Control: 400V
Single or three-phase motor connection
Size: 230x300x111
Protection: IP55
Type: ON / OFF

Reference	Power (kW)	Intensity range (A)	Maximum intensity (A)
BDM_01SP_7K5_400_009	7.5	0.6 to 0.9	0.9
BDM_01SP_7K5_400_012	7.5	0.8 to 1.2	1.2
BDM_01SP_7K5_400_018	7.5	1.2 to 1.8	1.8
BDM_01SP_7K5_400_027	7.5	1.8 to 2.7	2.7
BDM_01SP_7K5_400_040	7.5	2.7 to 4	4
BDM_01SP_7K5_400_060	7.5	4 to 6	6
BDM_01SP_7K5_400_090	7.5	6 to 9	9
BDM_01SP_7K5_400_110	7.5	8 to 11	11
BDM_01SP_7K5_400_140	7.5	10 to 14	14
BDM_01SP_15K_400_140	15	10 to 14	14
BDM_01SP_15K_400_200	15	14 to 20	20
BDM_01SP_15K_400_280	15	20 to 28	28
BDM_01SP_15K_400_420	15	28 to 32	32

Documentation	Wiring diagram

Brand

ean13 3760324771716

Availability date: 2022-04-08
