Dimmer - pack of 5

Quote request

€114.77 Tax excl.

Quantity discounts on the category 5.1 Solid state relays

✔ Between 2 and 4 lots purchased: 10% discount

✔ 5 lots and more purchased: 20% discount

☞ Want to become a distributor of our brand?
✉ Contact us for more customised discounts

Rated current

Control signal

Rated current	10 A 20 A 25 A 40 A
Control signal	control by potentiometer 220-470 k-Ohm - 2w 0-10V 0-10 V 4-20 mA

Combinations	Rated current	Control signal	Reference	Stock	Price	Add to cart
Rated current : 10 A Control signal : 0-10 V Reference : RSR22_10_V1_5 Stock : 16	10 A	0-10 V	RSR22_10_V1_5	Available now Stock : 16	€119.87 Tax excl.	€119.87 Tax excl.
Rated current : 10 A Control signal : 4-20 mA Reference : RSR22_10_A_5 Stock : 9	10 A	4-20 mA	RSR22_10_A_5	Available now Stock : 9	€114.77 Tax excl.	€114.77 Tax excl.
Rated current : 20 A Control signal : control by potentiometer 220-470 k-Ohm - 2w Reference : RSR22_20_5 Stock : 0	20 A	control by potentiometer 220-470 k-Ohm - 2w	RSR22_20_5	Available later	€41.65 Tax excl.	€41.65 Tax excl.
Rated current : 25 A Control signal : 0-10V Reference : RSR22_25_V1_5 Stock : 1	25 A	0-10V	RSR22_25_V1_5	Available now Stock : 1	€109.50 Tax excl.	€109.50 Tax excl.
Rated current : 25 A Control signal : 4-20 mA Reference : RSR22_25_A_5 Stock : 10	25 A	4-20 mA	RSR22_25_A_5	Available now Stock : 10	€112.22 Tax excl.	€112.22 Tax excl.
Rated current : 40 A Control signal : control by potentiometer 220-470 k-Ohm - 2w Reference : RSR22_40_5 Stock : 3	40 A	control by potentiometer 220-470 k-Ohm - 2w	RSR22_40_5	Available now Stock : 3	€57.46 Tax excl.	€57.46 Tax excl.
Rated current : 40 A Control signal : 0-10V Reference : RSR22_40_V1_5 Stock : 7	40 A	0-10V	RSR22_40_V1_5	Available now Stock : 7	€128.03 Tax excl.	€128.03 Tax excl.
Rated current : 40 A Control signal : 4-20 mA Reference : RSR22_40_A_5 Stock : 9	40 A	4-20 mA	RSR22_40_A_5	Available now Stock : 9	€119.36 Tax excl.	€119.36 Tax excl.

Description
Customer reviews

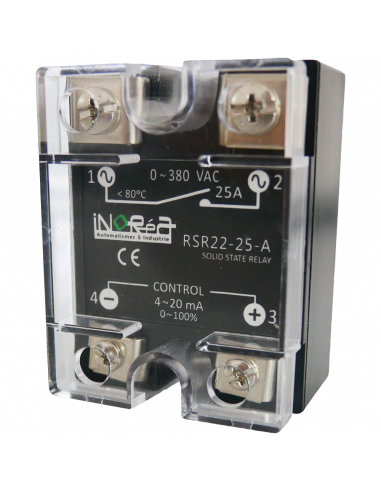

The single phase dimmer performs as a contactor: a voltage application on the potentiometer control drives the transistor with a variable voltage between 0 and 230V.

Technical features

CMOS technology
Top protection in plastic
Isolation voltage: 1000 MΩ / min (500V)
Stability of pulse voltage: 2000V, 50Hz
Dielectric rigidity 2500VAC / 1 min
Leakage current <2mA
Switching time <10ms
Operating temperature: -5°С to + 65°С, relative humidity: 35 - 85% RH

Radiator sizing is critical for the lifespan of the component. The power dissipation can be calculated from the following formula:

Effective current of the electrical charge (A) x 3.0 W/A.

Warning:

The single phase dimmer should be protected against output overvoltage by a varistor, particularly when using an inductive load.

Reference	Pole number	Control	Output voltage	Amps	Corresponding radiator
RSR22_20_5	2	by potentiometer 220-470 K Ω	0 to 230VAC	20 A	RST_20
RSR22_10_V1_5	2	0-10V	0 to 230VAC	10 A	RST_20
RSR22_10_A_5	2	4-20mA	0 to 230VAC	10 A	RST_20
RSR22_25_V1_5	2	0-10V	0 to 230VAC	25 A	RST_40
RSR22_25_A_5	2	4-20mA	0 to 230VAC	25 A	RST_40
RSR22_40_V1_5	2	0-10V	0 to 230VAC	40 A	RST_40
RSR22_40_A_5	2	4-20mA	0 to 230VAC	40 A	RST_40
RSR22_40_5	2	by potentiometer 220-470 K Ω	0 to 230VAC	40 A	RST_40

Technical documentation	CE Certificate

Brand

ean13 3760324775448

Show attestation

1★

2★

3★

4★

5★

10/10

Based on 2 reviews

Emmanuel L.
Published 02/02/2024 à 22:19 (Order date: 01/01/2024)

5

Conforme à mes attentes
Julie S.
Published 09/06/2022 à 12:01 (Order date: 25/05/2022)

5

gradateurs conforme à notre besoin. emballage individuel propre.
